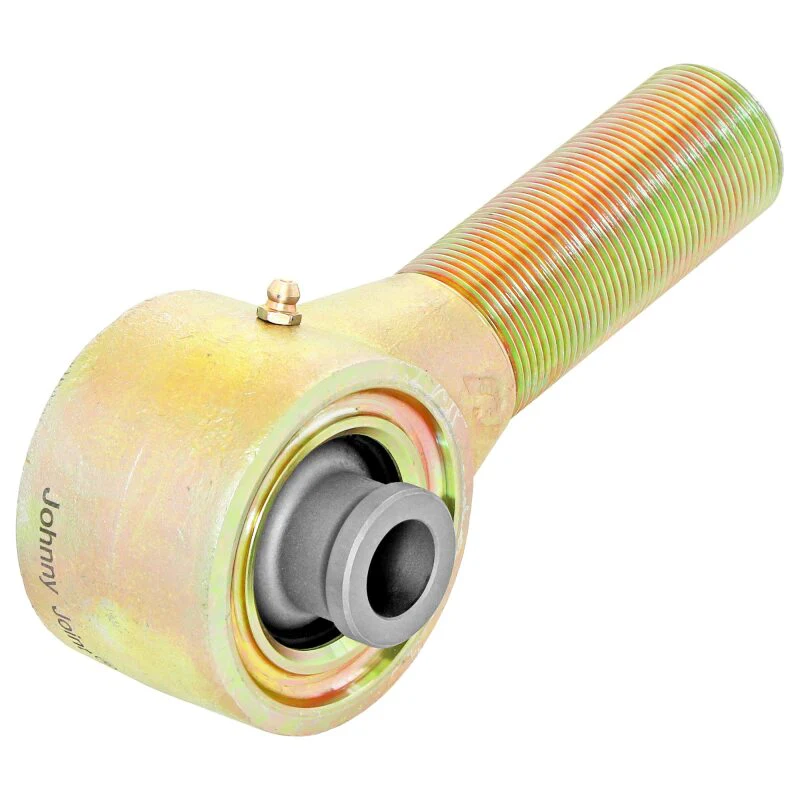

RockJock Johnny Joint Rod End 3in Narrow Forged (1-1/2in -12 LH Threads 3.550in x .827in Ball)
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 3 in. diameter joint body, fitted with a zerk fitting for greasing, 3.67 in. of 1 1/2 in.-12 left hand threads on the shank, and a 3.550 in. mounting width ball with a .827 thru bolt hole. Finished in gold zinc plating.
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 3 in. diameter joint body, fitted with a zerk fitting for greasing, 3.67 in. of 1 1/2 in.-12 left hand threads on the shank, and a 3.550 in. mounting width ball with a .827 thru bolt hole. Finished in gold zinc plating.
$127.03
RockJock Johnny Joint Rod End 3in Narrow Forged (1-1/2in -12 LH Threads 3.550in x .827in Ball)—
$127.03
Description
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 3 in. diameter joint body, fitted with a zerk fitting for greasing, 3.67 in. of 1 1/2 in.-12 left hand threads on the shank, and a 3.550 in. mounting width ball with a .827 thru bolt hole. Finished in gold zinc plating.
